features:
- complete punch tools - hydraulic punch tool kit features 1pc 15-ton pump; 2pcs draw studs; 2pcs piston shaft; 2pcs spacers and 10 sets of interchangeable dies & punches fitting for 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2"; 2 1/2"; 3"; 3 1/2" and 4" conduit sizes; can drill different sizes holes on stainless steel; iron; steel; aluminum; plastic; etc; 1/8' (11 gauge) max punching thickness for iron and 1/16' (16 gauge) for stainless steel; perfect to be used for different drilling projects
- efficient hydraulic design - hydraulic mechanism pump produces 15t strong pressure for providing high punching accuracy and fast punching speed which is 10 times much faster than common wrenches; more labor-saving on punching uniform holes; pump with pressure hose for adjusting the angle of the ram flexibly to meet your punching needs; perfect for using in narrow places
- sturdy steel construction - 40cr steel dies and 45# steel pump body for ensuring high strength; sturdiness and durability; stable construction is suitable for heavy-duty and frequent punching works
- convenient operation - rotatable "on/off" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value; perfect for adding more safety; anti-skid plastic grip at the end of the handle for easy and comfortable pressing
- portable & wide application - sturdy metal case with handle and double metal locks for convenient and safe storage; keeping all accessories in place and providing portability; widely used on installing and repairing wire pipeline; signal lamp and instrument on construction sites; metallurgy; petrol; electronics; electrical appliance; chemical industry; ship and machinery; etc.
specification:
- pump dimension(lxwxh): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11 cm)
- metal case dimension(lxwxh): 18 1/2" x 9 7/16" x 5 7/8" (47 x 24 x 15 cm)
- 10 dies & punches sizes: 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2"; 2 1/2"; 3"; 3 1/2"; 4"
- drilling hole size: 7/8' (22.5mm); 1 1/8' (28.3mm); 1 3/8' (34.6mm); 1 11/16' (43.2mm); 1 15/16' (49.6mm); 2 7/16' (61.5mm); 2 15/16' (74mm); 3 9/16' (89.9mm); 4 1/16' (102.7mm); 4 9/16' (115.4mm)
- draw stud size(lxdia.): 4 1/8" x 5/16" (10.5 x 0.78 cm)
- piston shaft sizes(lxdia.): 4 3/4" x 3/4" (12 x 1.9 cm); 3 1/8" x 3/4" (8 x 1.9 cm)
- hose length: 50 3/8" (128 cm)
- max pressure: 15 ton
- material: 45# steel; aluminum alloy; 40cr steel
- max thickness for iron: 1/8" (11 gauge)
- max thickness for stainless steel: 1/16" (16 gauge)
- net weight: 48.5 lbs (22 kg)

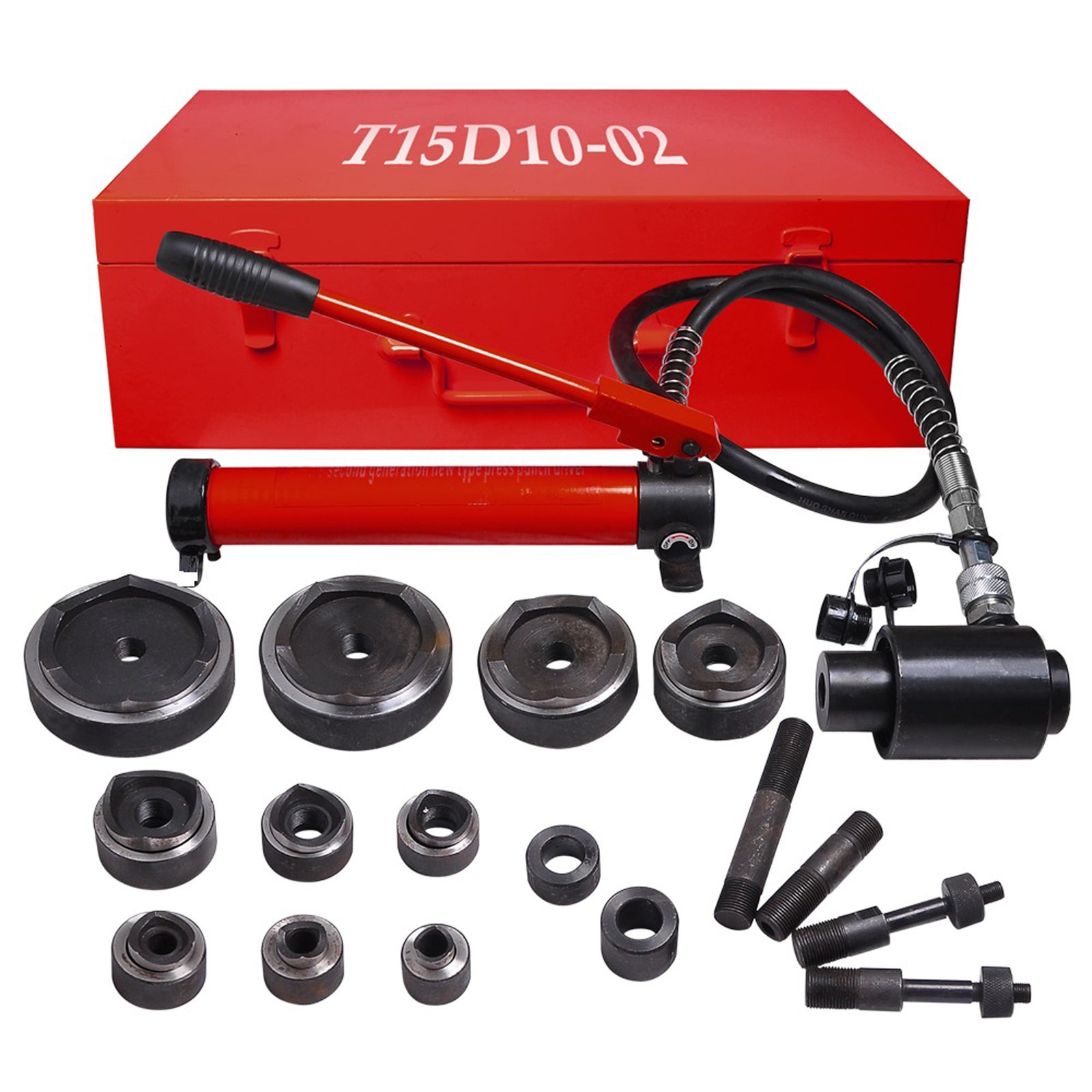

package content:
- 1x 15-ton pump
- 10 sets of dies & punches
- 1x ram with hose
- 2x draw studs
- 2x piston shafts
- 2x spacers
- 1x metal carrying case
- 1x manual
notice: do not operate the pump after ram motion stops.Continuing to operate the pump lever after the ram stops will damage the ram
notes: attention: ebay map:$205.9; other platform map: $205.9.
