features:

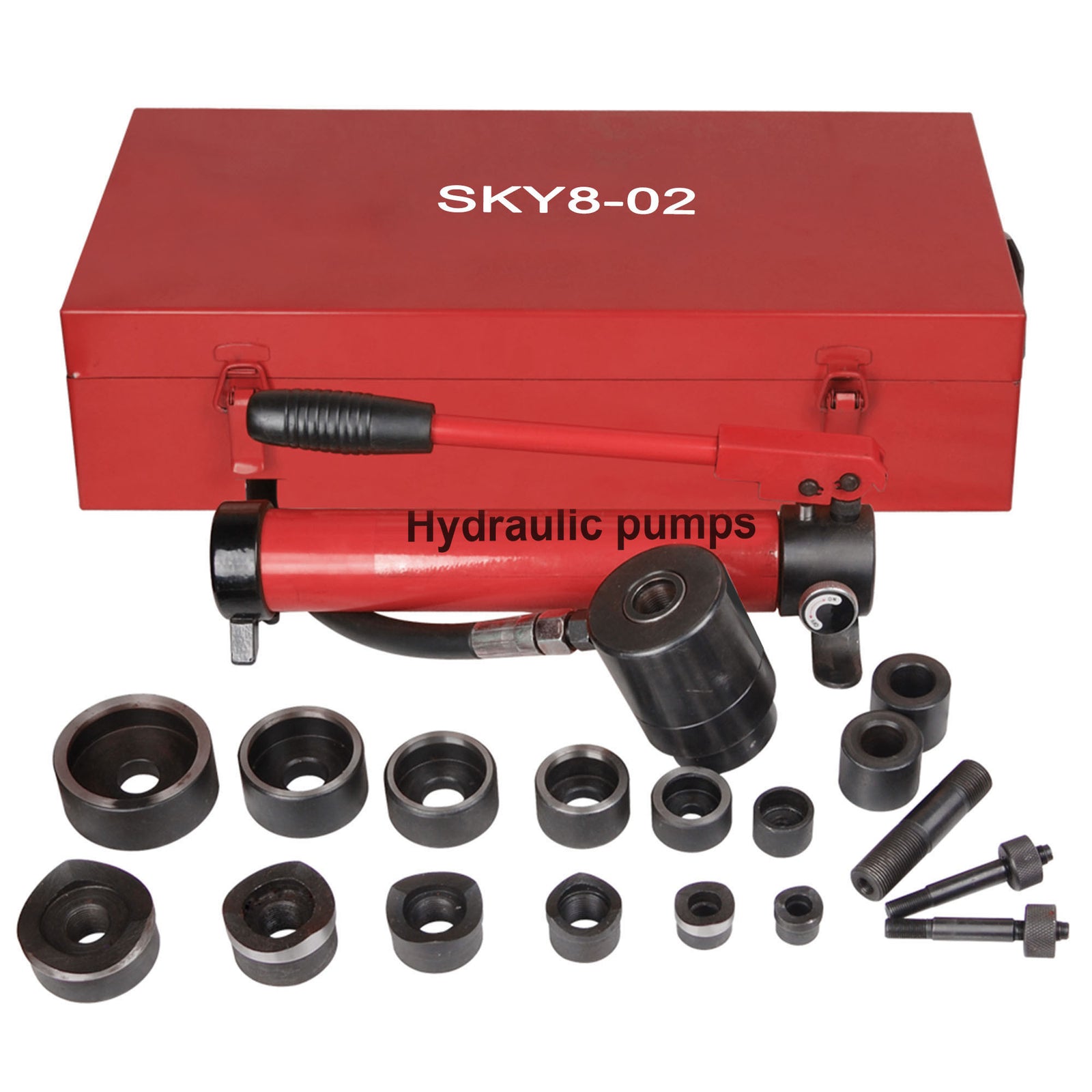

- complete punch tools - hydraulic punch tool kit features 1pc 10-ton pump; 2pcs draw studs; 1pc piston shaft; 2pcs spacers and 6 sets of interchangeable dies & punches fitting for 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2" and 2" conduit sizes; can drill different sizes holes on stainless steel; iron; steel; aluminum; plastic; etc; 1/8' (11 gauge) max punching thickness for iron and 1/16' (16 gauge) for stainless steel; perfect to be used for different drilling projects
- efficient hydraulic design - hydraulic mechanism pump produces 10t strong pressure for providing high punching accuracy and fast punching speed on punching uniform holes; more labor-saving and faster than common wrenches; ideal for improving working efficiency; pump with pressure hose for adjusting the angle of the ram flexibly to meet your punching needs; perfect for using in narrow places
- sturdy steel construction - 40cr steel dies and steel pump body for ensuring high strength; sturdiness and durability; stable construction is suitable for heavy-duty and frequent punching works
- convenient operation - rotatable "on/off" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value; perfect for adding more safety; anti-skid plastic grip at the end of the handle for easy and comfortable pressing
- portable & wide application - sturdy metal case with handle and double metal locks for convenient and safe storage; keeping all accessories in place and providing portability; widely used on installing and repairing wire pipeline; signal lamp and instrument on construction sites; metallurgy; petrol; electronics; electrical appliance; chemical industry; ship and machinery; etc.
specification:
- pump dimension(lxw): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11 cm)
- metal case dimension(lxwxh): 16 15/16" x 9 7/16" x 4 3/4" (43 x 24 x 12 cm)
- 6 dies & punches sizes: 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2"
- drilling hole size: 7/8" (22.5mm); 1 1/8" (28.3mm); 1 3/8" (34.6mm); 1 11/16" (43.2mm); 1 15/16" (49.6mm); 2 7/16" (61.5mm)
- draw studs sizes(lxdia.): 3 1/8" x 5/16" (7.9 x 0.8 cm); 3 3/16" x 5/16" (8.1 x 0.8 cm)
- max pressure: 10 ton
- material: 45# steel; 40cr steel
- max thickness for iron: 1/8" (11 gauge)
- max thickness for stainless steel: 1/16" (16 gauge)
- net weight: 23.1 lbs (10.5 kg)
package content:
- 1x 10-ton pump
- 6 sets of dies & punches
- 2x draw studs
- 1x piston shaft
- 2x spacers
- 1x metal carrying case
- 1x manual
notice: do not operate the pump after ram motion stops.Continuing to operate the pump lever after the ram stops will damage the ram
