features:

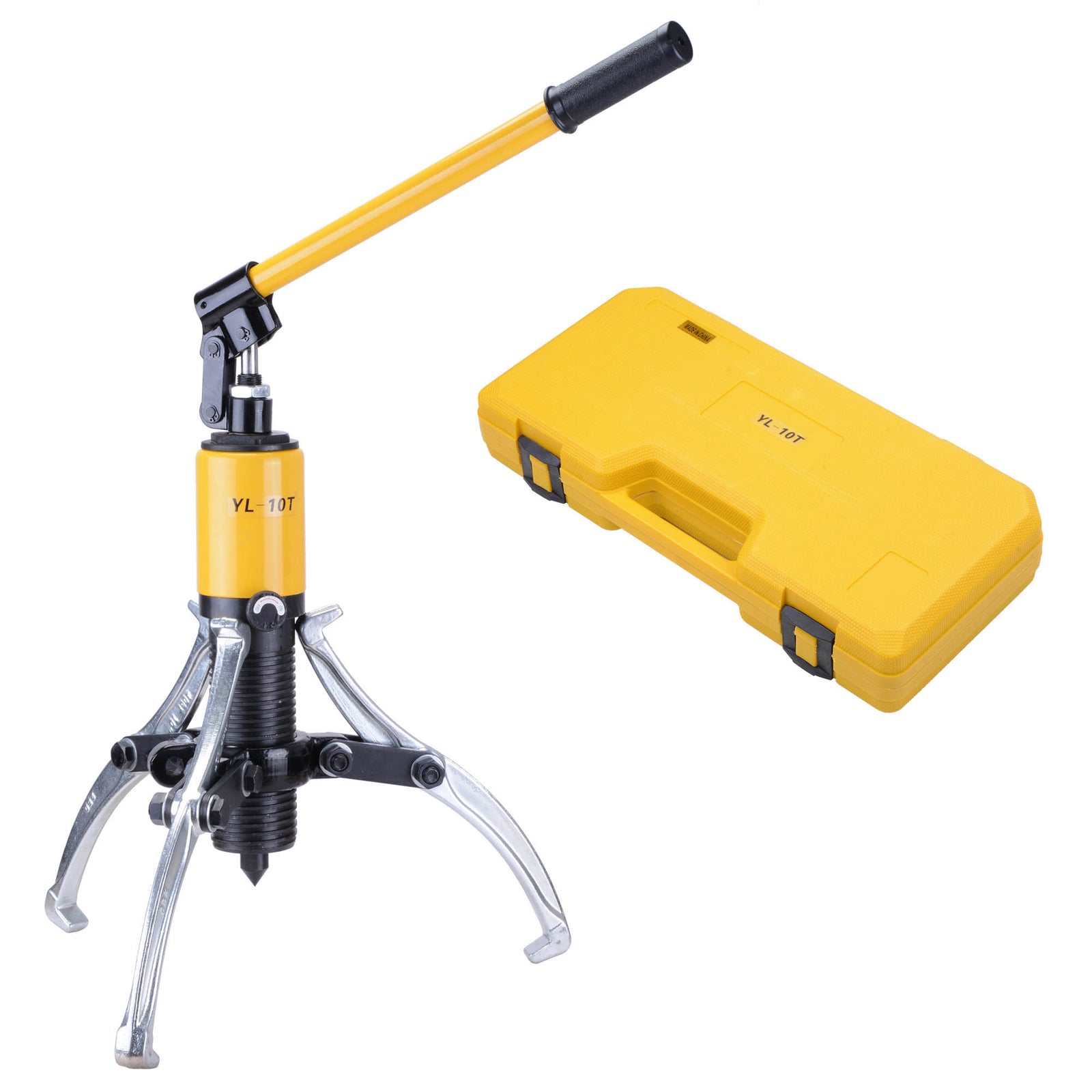

- great compatibility - 3-jaw hydraulic gear puller set features 10 tons max capacity; 2' (50mm) axis travel; 9 13/16' (250mm) max spread and 6 5/16' (160mm) max reach for fully meeting your different requirements on pulling truck hub; brake drums; sprockets; rotors; car axles; wheel bearing; shaft and pulley disassembly
- 3 in 1 design - puller set integrates pump; oil tube and drawing machine for providing comprehensive functions on mechanical installation and repair; can be used horizontally and vertically; not restricted by work site environment
- flexible & easy operation - 3 jaws can be adjusted from high to low point and pump head can be rotated 360 degrees for flexibility; 2-way yoke allows 2 or 3 leg pullers for easy interchanging; rotate the oil return switch and pull up the handle to pressurize or release pressure; safety flooding valve to avoid overloading
- durable steel construction - hydraulic pump is made of high strength 45# carbon steel and processed by integrated welding for preventing oil leakage and providing sturdiness; rust resistance and corrosion resistance for frequent use; durable alloy steel jaws for ensuring stability
- portable & wide application - pump and all accessories can be packed in a mould carrying case well; easy for you to transport or storage; widely used for railway vehicle maintenance; car mechanical factories; mining equipment maintenance; repair workshops; etc
specification:
- overall dimension(lxwxh): 16 9/16' x 8 11/16' x 22 7/16' (42 x 22 x 57 cm)
- material: 45# steel
- max capacity: 10 tons
- axis travel: 2' (50 mm)
- min/max reach: 0' to 6 5/16' (0 to 160 mm)
- min/max spread: 3 15/16' to 9 13/16' (100 to 250 mm)
- net weight: 22 lbs (10 kg)
package content:
- 1x hydraulic pump
- 1x handle
- 1x 2/3 leg pulling yoke
- 3x puller legs
- 6x screw sets
- 6x link plates
- 1x thimble
- 1x carrying case
- 1x manual
